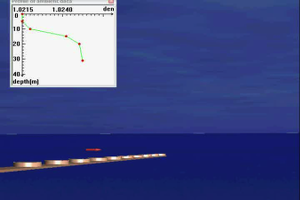

VISJET Simulation of 8-jet group in stratified crossflow

Input parameters: q = 0.00864 m³/s/m, D = 0.107 m, s = 18 m, Ua = 0.12 m/s (based on data on Roberts & Snyder (1993))

Click to view the movie

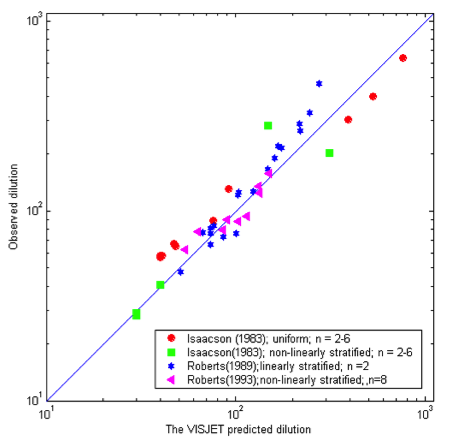

Good agreement between the observed and VISJET predicted dilution supports the application of composite dilution concept. The observed dilution data are given in Isaacson et al. (1983), Roberts et al. (1989), Roberts and Snyder (1993) for ambient conditions included unstratified; linearly stratified, highly non-linear stratified condition.
